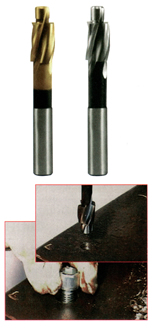

Counterbore
|
Fine/medium grade for through hole Material:HSS-M2 & HSS-Co5 |
 |
For thead
|
CSK Dia
|
Pilot Dia
|
Shank Dia
|
Overall Length
|
Art No.HSSCD41- |
Art No.HSS-TiNCD41- |
| M3 |
6.0 |
3.2 |
5.0 |
71.0 |
060071 |
060071T |
| M4 |
8.0 |
4.3 |
5.0 |
71.0 |
080071 |
080071T |
| M5 |
10.0 |
5.3 |
8.0 |
80.0 |
100080 |
100080T |
| M6 |
11.0 |
6.4 |
8.0 |
80.0 |
110080 |
110080T |
| M8 |
15.0 |
8.4 |
12.5 |
100.0 |
150100 |
150100T |
| M10 |
18.0 |
10.5 |
12.5 |
100.0 |
180100 |
180100T |
| M12 |
20.0 |
13.0 |
12.5 |
100.0 |
200100 |
200100T |
|
| For thread core hole Material:HSS-M2 & HSS-Co5 |
For thead
|
CSK Dia
|
Pilot Dia
|
Shank Dia
|
Overall Length
|
Art No.HSSCD42- |
Art No.HSS-TiNCD42- |
| M3 |
6.0 |
2.5 |
5.0 |
71.0 |
060071 |
060071T |
| M4 |
8.0 |
3.3 |
5.0 |
71.0 |
080071 |
080071T |
| M5 |
10.0 |
4.2 |
8.0 |
80.0 |
100080 |
100080T |
| M6 |
11.0 |
5.0 |
8.0 |
80.0 |
110080 |
110080T |
| M8 |
15.0 |
6.8 |
12.5 |
100.0 |
150100 |
150100T |
| M10 |
18.0 |
8.5 |
12.5 |
100.0 |
180100 |
180100T |
| M12 |
20.0 |
10.2 |
12.5 |
100.0 |
200100 |
200100T |
|

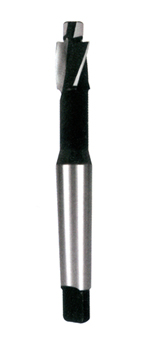

Counterbore with morse taper shank
|
Fine/medium grade for through hole Material:HSS-M2 & HSS-Co5 |
 |
For thead
|
CSK Dia
|
Pilot Dia
|
Shank Dia
|
Overall Length
|
Art No.HSSCD42- |
| M10 |
18.0 |
10.5 |
M2 |
150.0 |
180150 |
| M12 |
20.0 |
13.0 |
M2 |
150.0 |
200150 |
| M14 |
24.0 |
15.0 |
M2 |
160.0 |
240160 |
| M16 |
26.0 |
17.0 |
M3 |
190.0 |
260190 |
| M18 |
30.0 |
19.0 |
M3 |
190.0 |
300190 |
| M20 |
33.0 |
21.0 |
M3 |
190.0 |
330190 |
| M22 |
36.0 |
23.0 |
M3 |
205.0 |
360205 |
|
| For thread core hole Material:HSS-M2 & HSS-Co5 |
For thead
|
CSK Dia
|
Pilot Dia
|
Shank Dia
|
Overall Length
|
Art No.HSSCD42- |
| M10 |
18.0 |
8.5 |
M2 |
150.0 |
180150 |
| M12 |
20.0 |
10.2 |
M2 |
150.0 |
200150 |
| M14 |
24.0 |
12.0 |
M2 |
160.0 |
240160 |
| M16 |
26.0 |
14.0 |
M3 |
190.0 |
260190 |
| M18 |
30.0 |
15.5 |
M3 |
190.0 |
300190 |
| M20 |
33.0 |
17.5 |
M3 |
190.0 |
330190 |
| M22 |
36.0 |
19.5 |
M3 |
205.0 |
360205 |
|
